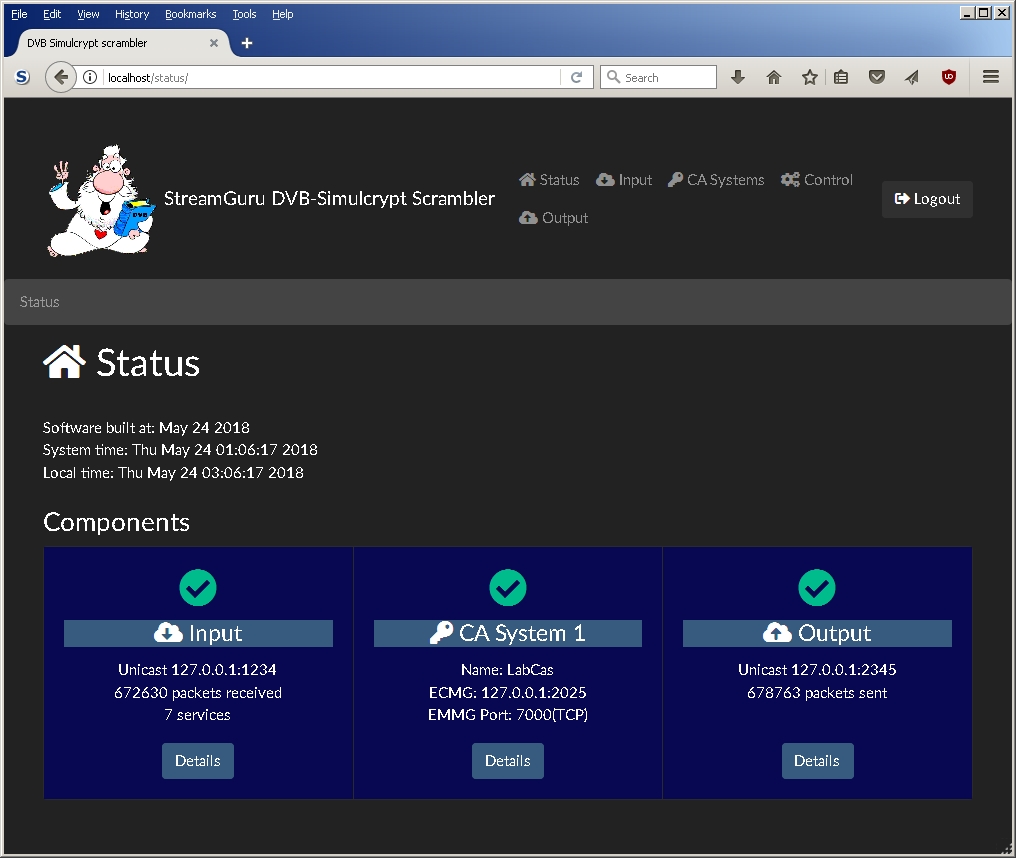

Scrambler WebUI - Status Screen

scrambler status

The Status screen gives an overview over all scrambler components.

Status cards for the Input, each configured CA system and the output show either a green Checkmark Ok-Icon or a red Error-Icon if anything goes wrong. For each component, a few key parameters are displayed as well.

For the Input, this is the Unicast or Multicast address, the number of packets received so far and the number of services detected in the input signal.

For CA systems the ECMG and EMMG address and mode are displayed.

For the output, the Unicast or Multicast address and the number of sent transport stream packets is displayed.

This pages automatically updates every couple of seconds and is perfect for monitoring the overall system status.
